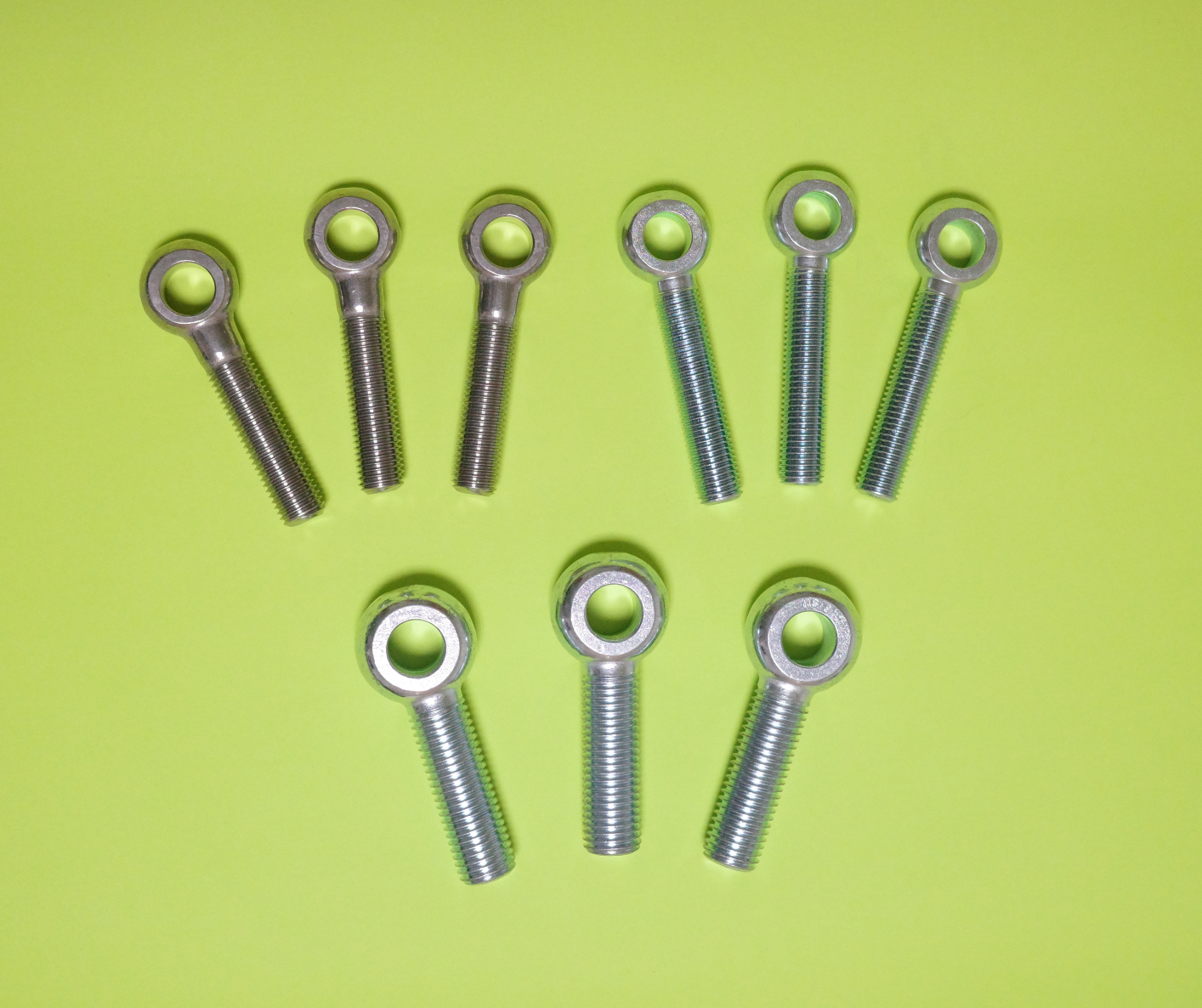

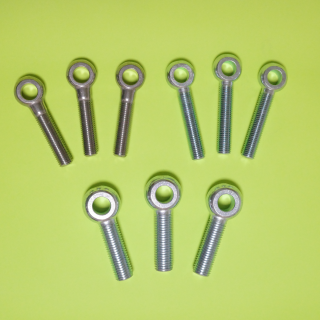

DIN 444 單眼螺栓
材料
不鏽鋼:
● AISI 304/A2, AISI 316/A4
碳鋼:
● ISO Class 4.6, 5.6, 6.8, 8.8
● S.A.E. Grade 2, Grade 5
表面處理:鍍鋅
其他規格、材質可客製
不鏽鋼:
● AISI 304/A2, AISI 316/A4
碳鋼:
● ISO Class 4.6, 5.6, 6.8, 8.8
● S.A.E. Grade 2, Grade 5
表面處理:鍍鋅
其他規格、材質可客製

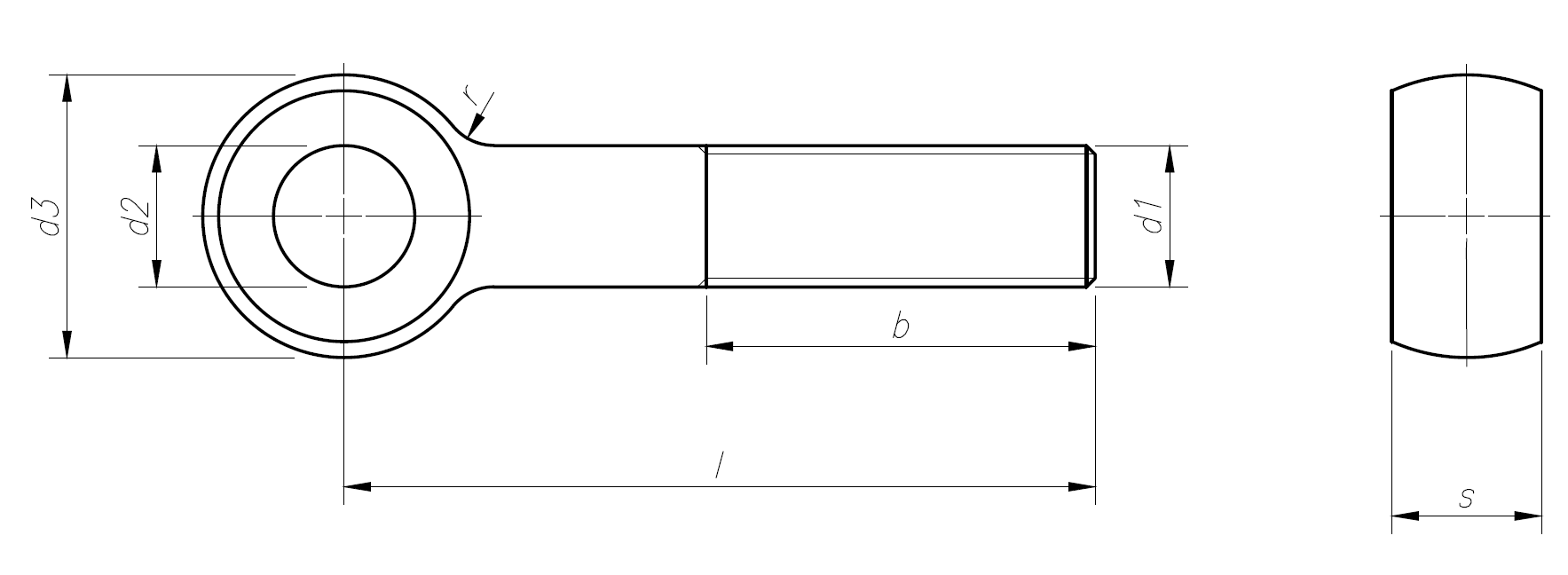

Screw Thread d1 |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
M36 |
||
P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | ||
b |
16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 66 | - | ||
- | - | 28 | 32 | 36 | 44 | 52 | 60 | 72 | 84 | |||
- | - | - | - | 49 | 57 | 65 | 73 | 85 | 97 | |||
d2 H9 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 27 | 32 | ||
d3 | max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 55 | 65 | |
min |
Type A | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 53.1 | 63.1 | |
Type B & C | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 54.26 | 64.26 | ||
r | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | 16 | ||
S |
Type A |
max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 34 | 41 |
min | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 33 | 40 | ||
Type B & C |
max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 30 | 38 | |
min | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 29.79 | 37.75 |
l
|
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
M36 |
||||||
Nominal size |
Type A | Type B | Type C |
Weight kg/1000pcs |
||||||||||||
Min. | Max. | Min. | Max. | Min. | Max. | |||||||||||
30 | 28.95 | 31.05 | 29.35 | 30.65 | 29.6 | 30.4 | 7.93 | - | - | - | - | - | - | - | - | - |
35 | 33.75 | 36.25 | 34.2 | 35.8 | 34.5 | 35.5 | 8.7 | 12.6 | - | - | - | - | - | - | - | - |
40 | 38.75 | 41.25 | 39.2 | 40.8 | 39.5 | 40.5 | 9.47 | 13.7 | 25 | - | - | - | - | - | - | - |
45 | 43.75 | 46.25 | 44.2 | 45.8 | 44.5 | 45.5 | 10.3 | 14.8 | 26.9 | 36 | - | - | - | - | - | - |
50 | 48.75 | 51.25 | 49.2 | 50.8 | 49.5 | 50.5 | 11 | 15.9 | 28.9 | 39.1 | - | - | - | - | - | - |
55 | 53.5 | 56.5 | 54.05 | 55.95 | 54.4 | 55.6 | 11.8 | 17 | 30.9 | 42.2 | 67 | - | - | - | - | - |
60 | 58.5 | 61.5 | 59.05 | 60.95 | 59.4 | 60.6 | 12.6 | 18.1 | 32.8 | 45.3 | 71.4 | - | - | - | - | - |
65 | 63.5 | 66.5 | 64.05 | 65.95 | 64.4 | 65.6 | 13.3 | 19.2 | 34.8 | 48.4 | 75.8 | - | - | - | - | - |
70 | 68.5 | 71.5 | 69.05 | 70.95 | 69.4 | 70.6 | 14.1 | 20.3 | 36.8 | 51.5 | 80.3 | 149 | - | - | - | - |
75 | 73.5 | 76.5 | 74.05 | 75.95 | 74.4 | 75.6 | 14.9 | 21.5 | 38.8 | 54.6 | 84.8 | 157 | - | - | - | - |
80 | 78.5 | 81.5 | 79.05 | 80.95 | 79.4 | 80.6 | 15.7 | 22.6 | 40.7 | 57.6 | 89.2 | 164 | - | - | - | - |
90 | 88.25 | 91.75 | 88.9 | 91.1 | 89.3 | 90.7 | - | 23.7 | 44.7 | 63.8 | 98.1 | 180 | - | - | - | - |
100 | 98.25 | 101.75 | 98.9 | 101.1 | 99.3 | 100.7 | - | - | 48.6 | 70 | 106 | 196 | 334 | 454 | - | - |
110 | 108.25 | 111.75 | 108.9 | 111.1 | 109.3 | 110.7 | - | - | 52.6 | 76.1 | 115 | 212 | 359 | 489 | - | - |
120 | 118.25 | 121.75 | 118.9 | 121.1 | 119.3 | 120.7 | - | - | 56.5 | 82.3 | 124 | 228 | 383 | 524 | - | - |
130 | 128 | 132 | 128.75 | 131.25 | 129.2 | 130.8 | - | - | 60.5 | 88.4 | 133 | 244 | 408 | 560 | - | - |
140 | 138 | 142 | 138.75 | 141.25 | 139.2 | 140.8 | - | - | 64.4 | 94.5 | 142 | 259 | 433 | 596 | - | - |
150 | 148 | 152 | 148.75 | 151.25 | 149.2 | 150.8 | - | - | - | 101 | 151 | 275 | 457 | 631 | 997 | - |
160 | 156 | 164 | 158.75 | 161.25 | 159.2 | 160.8 | - | - | - | - | 160 | 291 | 482 | 667 | 1050 | 1570 |
180 | 176 | 184 | 178.75 | 181.25 | 179.2 | 180.8 | - | - | - | - | 178 | 322 | 531 | 738 | 1160 | 1730 |
200 | 195.4 | 204.6 | 198.55 | 201.45 | 199.1 | 200.9 | - | - | - | - | 195 | 354 | 581 | 809 | 1270 | 1890 |
220 | 215.4 | 224.6 | 218.55 | 221.45 | 219.1 | 220.9 | - | - | - | - | 211 | 383 | 624 | 868 | 1370 | 2050 |
240 | 235.4 | 244.6 | 238.55 | 241.45 | 239.1 | 240.9 | - | - | - | - | 229 | 414 | 674 | 939 | 1480 | 2200 |
260 | 254.8 | 265.2 | 258.4 | 261.6 | 258.9 | 261 | - | - | - | - | 247 | 446 | 723 | 1010 | 1590 | 2350 |
280 | 274.8 | 285.2 | 278.4 | 281.6 | 278.9 | 281 | - | - | - | - | - | - | - | - | 1700 | 2500 |
300 | 294.8 | 305.2 | 298.4 | 301.6 | 298.9 | 301 | - | - | - | - | - | - | - | - | 1810 | 2650 |
